艾培尔HLC钢板起重钳





美国艾培尔钢板起重钳产品介绍:

HLC型钢板吊钳用于横向水平起吊和翻转达板材。专业的水平夹口和底座使得员装卸操作极为方便。
该吊钳,就其承重能力而言,自重(吊钳本身重量)***轻巧。先斩后务请注意HLC吊钳的WLL(工作载荷)是指一对吊钳的安全承重载荷。HLC横吊适用于起吊表面硬度在37RC(345HB)以上板材。
应用场合
钢结构建筑场地   造船厂    钢铁类结构产品制造厂    铁道建设场地(乡村建设场地等)
技术性能和安全性能
具备优越的单品可追溯性和品质保证:ABLE品牌模锻***显示且每个产品有单独***的编码身份。零部件全部锻制,且随时可以提供更换配件高强度、高耐磨性:***小破断力为正常工作载荷的五倍,或更高。

Sv PLUS HORIZONTAL LIFTING CLAMP
This HLC clamp is used for horizontal lifting and transfer of steel plates and is particularly suited to this application due to the special thin ground plate and buffer cams which facilitate easy insertion and removal under the plate being lifted. It can also be used hanging vertically under a spreader.
These clamps are light in weight relative to their lifting capacity. Please note that the WLL of these clamps is given based on a pair. The clamps are suitable for surface hardnesses up to 37 RC (345,HB).
WORKING FIELDS
■At building constructionfield
■At ship building field
■Metal production workshop
■At subway construction(civil engineering construction)sites
SAFETY TECHNICAL FEATURE
■    Embossed branding, PI code for good traceablility and quality guarantee
■    All forged parts with stock availability at any time.
■    High strength and durability with MBLof 500% of capacity. Or better.

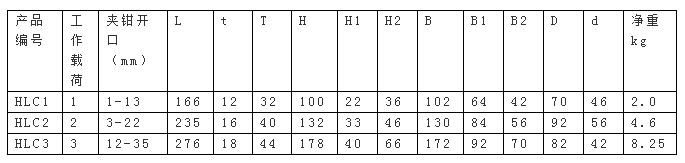

艾培尔HLC钢板起重钳产品技术参数:
