艾培尔PLC钢板起重钳



 美国艾培尔钢板起重钳的品介绍:

◆超带弹簧型镇机构,无负荷状态下牙口也在紧咬状态
    ◆起吊后,铗具也按荷重比例增加强力;
◆强韧,耐久
简述使用方法:
◆关闭阀,向上推;安全锁即自动锁住;钢丝绳松缓,有冲击铗具也不会放开,可放心安全使用。
◆阀柄下放,牙口就张开,不再咬合钢板,此时***不可做吊上操作。
钢板起重钳优越的技术性能PLC美国艾培尔
●     PLC型钢板吊钳以科学的设计使用跤合处的锯齿契合紧密,增大了咬合力度,适用于钢板和钢结构产品的起升,180度翻转和纵向转移。
●     具有广泛的用途,尤其适用用于钢板,造船部件以及不同厚度板材的起吊和翻转。
●     内置枢纽吊环,确保操作者在任一方向放置和起升重物。
●     配置特殊挂钩装置,可轻易的将钢板吊安装在水平位置上。
●     新型钢钳口径更宽,适用于不同厚度的钢板。
●     配置精密锻铸安全锁,双重锁配置确保吊钳安全正常使用。
●     能对起吊物进行预载试验。
●     垂吊适用于表面粗糙大于37RC(345HB)的钢板。
●     全模锻产品,具备优异的可追溯功能,安全系数达到工作载荷的六倍以上。
Technical Specialities
▲     The Vertical PLC clamp is designed to ensure that the load can be lifted and turned (180).Whilst at the same time ensuring that the load is positivel retained.
▲     These clamps have a wide range of uses and are particularly suited for the lifting and turning of steel plates, ship sections and the extraction of pile sheets.
▲     Fitted with a hinged hoisting eye moving in all directions so as to enable the user to place and lift the load from any directions.
▲     Clamps are fitted with special hook-up facilities to enable easy fitment of the clamp in horizontal position.
▲     The new models have a greater jaw aperture enabling plates of varying thickness to be lifted with the same clamp.
▲     The clamp is fitted with a safety latch which ensures the proper use by means of a double locking device,both in open as well as closed position.
▲     This also guarantees a pre-load on the material being lifted.
▲     The clamps are suitable for surface hardnesses up to 37 RC (345HB).Small overall dimension with a relatively high lifting capacity.
▲     Overall forged structure with good traceability and the safety factor of 6 times.

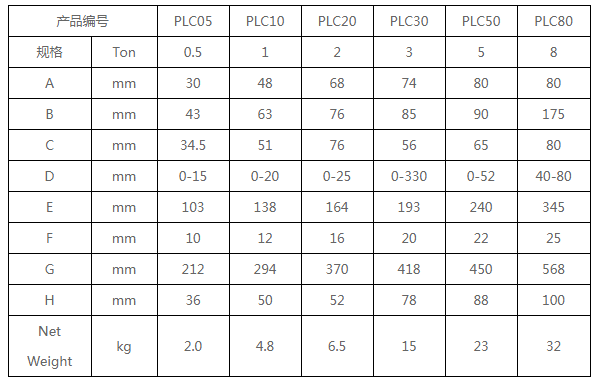

艾培尔PLC钢板起重钳技术参数:
